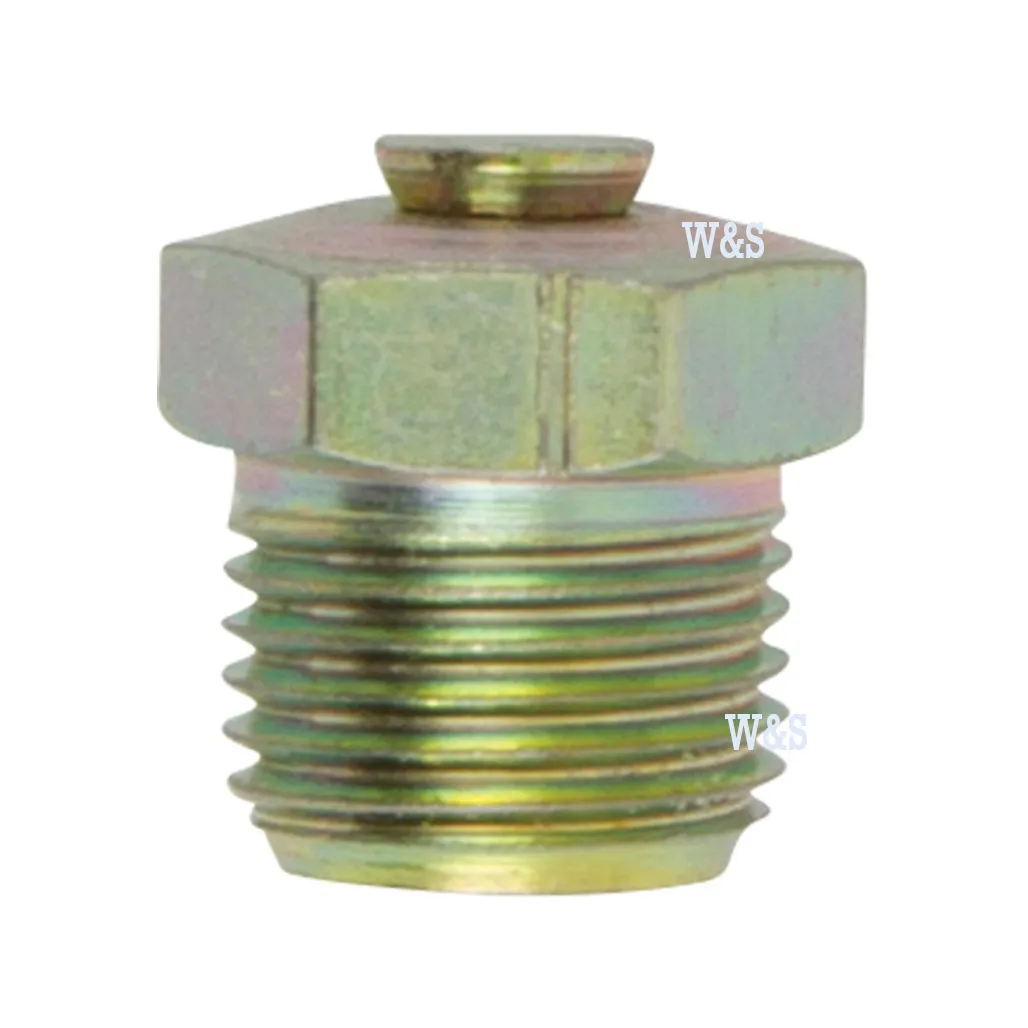

A Pressure Relief Fittings are used, where excessive lubrication pressure is not desired.
» Brand: W&S
» Standard: DIN 71412, SAE J534, JIS B1575, ISO
» Material: Mild Steel, En1AL
» Sizes: As per customer requirement
» Thread: Straight
» Surface Finish: Zinc plated with clear/yellow/olive green/trivalent passivation
» Application: Automotive, Industrial, Construction
» Packaging: Standard or as per customer requirement
» MOQ: 2000 Pcs.
1. It is also referred to Pressure Relief Zerk Fittings, Pressure Relief Lubrication Fittings, and Pressure Relief Grease Zerks.
2. Fitting profile and dimensions are comply to SAE, DIN, BS,JIS, & IS standards.
Item Code | Description | Hex Size | Thread Length | Total Length |
GNP-81S | M8x1-St. | 9 mm | 5.5 mm | 11 mm |
GNH-101S | M10x1- St. | 11 mm | 6 mm | 11 mm |
GNP-14UNS | 1/4"x28 UNF- St. | 9 mm | 5.5 mm | 11 mm |
GNP-516UNS | 5/16"x28 UNF- St. | 9 mm | 5.5 mm | 11 mm |
GNP-18BPS | 1/8"x28 BSP- St. | 11 mm | 6 mm | 11 mm |
GNP-18NTS | 1/8"x27 NPT- St. | 11 mm | 6 mm | 11 mm |
